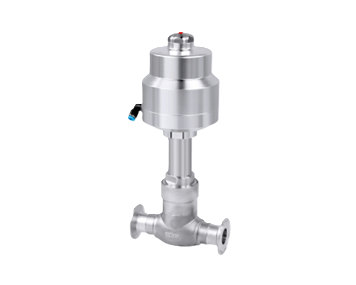

Pneumatic Globe Valve

Description

Pneumatic Globe Valve
Application
Pneumatic Globe Valve as an automatic control system of line switch is widely used in printing and weaving, printing and dyeing, bleaching, washing, food, chemical industry, water treatment, pharmaceutical, ect. It has the characteristics of anti water hammer, no noise, reliable sealing performance etc..

Design Features
◆Size: 1/2″-3″, DN10-DN80
◆Material: CF8/304、CF8M/316
◆Connection : Clamp,thread, flange,BSP、BSP、NPT、DIN
◆Working pressure：8bar(standard) 10bar(Options)
◆Working temperature：120℃(standard) 180℃(Options)

Operation
◆Manual：1) plastic handwheel; 2) stainless steel handwheel; 3) fine-tuning the handwheel
◆Pneumatic：1) plastic actuator (standard) 2) stainless steel actuators (option)
◆Pneumatic control mode: positioner, process controller, valve control unit, position sensor
